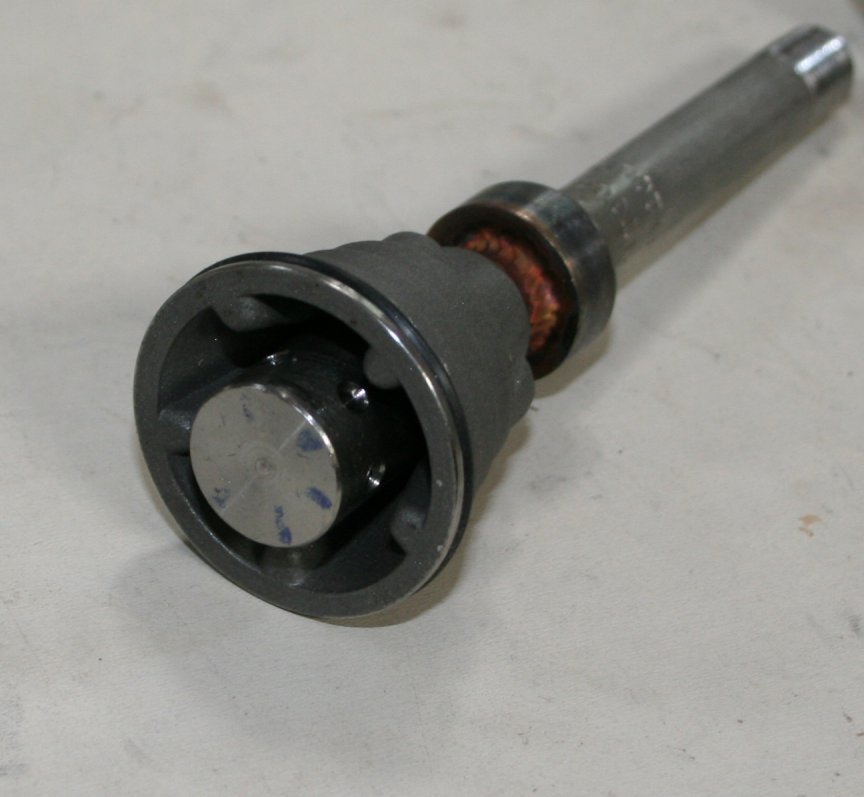

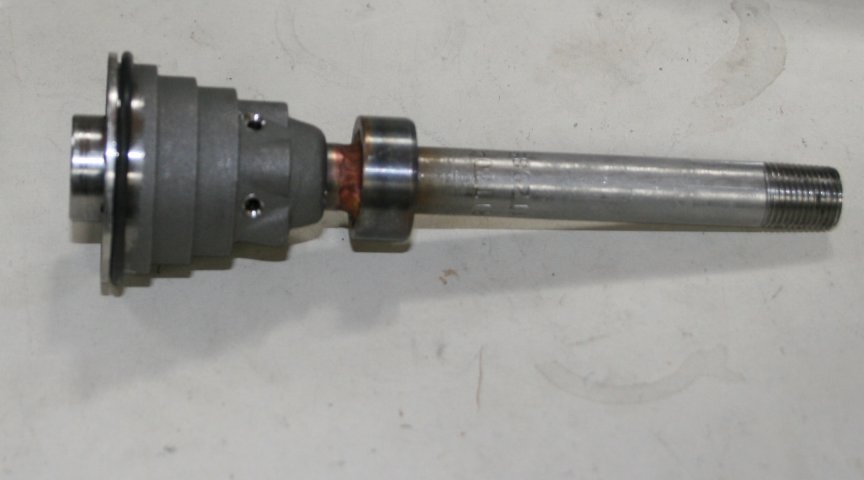

For small production or pilot use, this Reaction Mixer allows you to combine up to four streans in one turbulnet reaction zone, gas/gas, liquid/liquid, or gas/liquid.

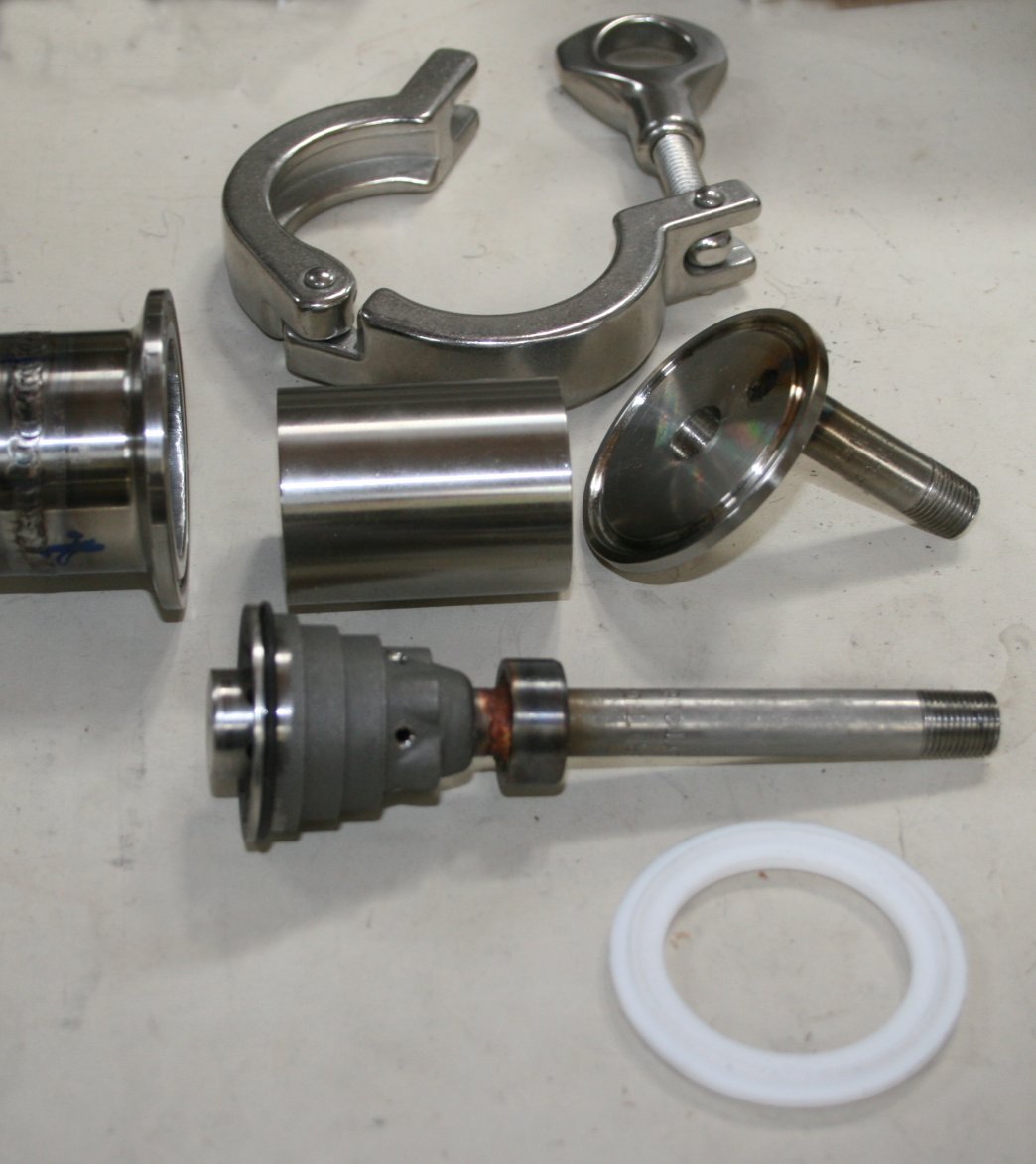

Sanitary type construction for easy assembly and cleanout, this unit is constructed from 316 SS alloy as standard. Optional Inconel, and Titanium construction is available. Complete sanitary construction (no threaded parts) also avalaible.
Pressure rating is 1400 PSIG at 72*F, Higher temperatures will reduce the pressure rating. Maximum temperature is 450*F. Adjustable pressure valve for reaction chamber outlet allows setting desired reaction chamber pressure. Optional static mixer elements are available for the reaction chamber to help heat exchange to the wall, or for additional reaction mixing.
Fluid inlets are 1/8" NPT. Outlet is Tri-Clamp design.
Optional external jacketing is available for heating and/or cooling.
Prices start at $650.
Specifications:

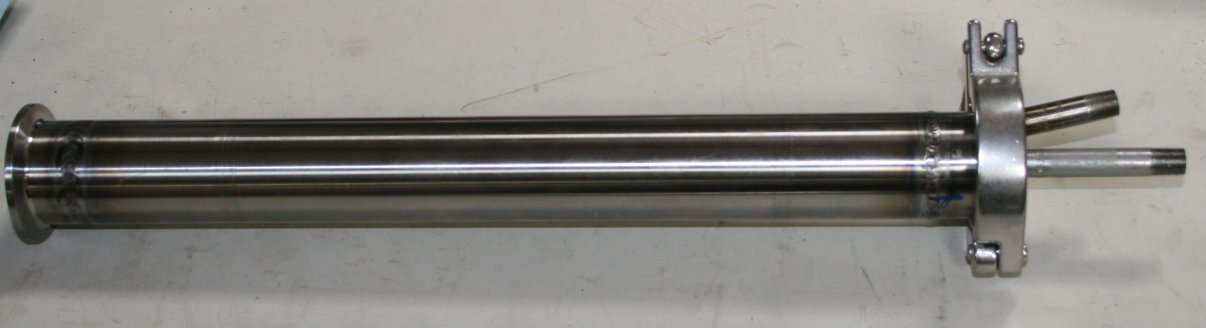

Reaction chamber diameter: 1.370" inside diamter, lengths from 3" up to 36".
