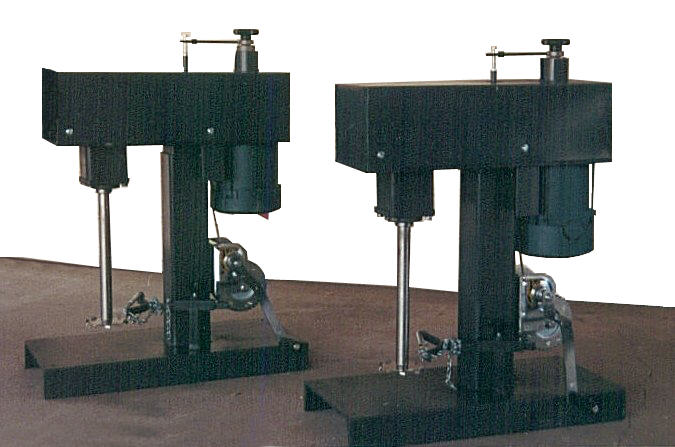

HLM Series Production Dispersers

The HLM series dispersers are mechanical belt variable speed drive with TEFC
motors (Exp;osion Proof is optional), and a lift system that is either pneumatic, pneumatic/hydraulic,
or hand crank (HLM-2 machine only).

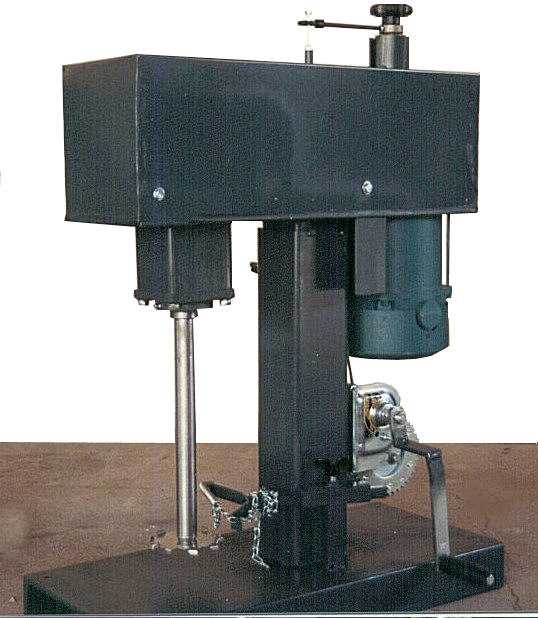

The HLM-2 is designed for 5-7 gallon standard buckets, and has a 14" lift stroke, and 2 HP 3 phase motor.
Shaft RPM is approximately 1000-6000 RPM, and a 3" or 4" sawtooth style impeller is standard, as is an
adjustable mix container holder. Prices start at $2990.00.


The HLM-3 is designed for production batches up to 20 gallons (20" by 20" max tank size),
has a 3 HP 3 phase motor, and 18" pneumatic lift. Shaft RPM is approximately 800-5000 RPM, and a 5"
sawtooth style hi-shear impeller is standard, as is an adjustable tank holder.
Prices start at $4150.00.


The HLM-5 series, designed for 30 and 55 gallon drums, with 5 HP motor, will be available shortly.
Estimated price will be in the $5900 range.

Inverter drive is available on all machines in lieu of  variable belt.

Options on all machines include digital tachometer, and ammeter. Addition options such as watt meters,
product temperature readouts, etc, are also avilable on a case by case basis.
